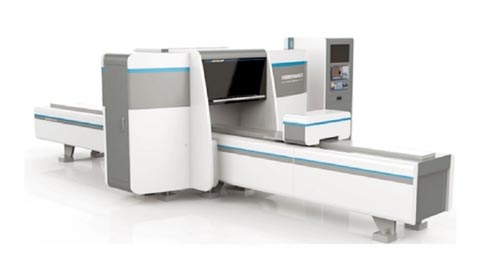

CNC Busbar Punching & Cutting Machine
CNC Busbar Punching & Cutting Machine

In electric power distribution, a busbar (also bus bar) is a metallic strip or bar, typically housed inside switchgear, panel boards, and busway enclosures for local high current power distribution. They are also used to connect high voltage equipment at electrical switchyards, and low voltage equipment in battery banks. They are generally uninsulated, and have sufficient stiffness to be supported in air by insulated pillars. These features allow sufficient cooling of the conductors, and the ability to tap in at various points without creating a new joint.

Enquiry Now

PARAMETERS OF THE MACHINE

Items Unit NC602-8C
Nominal force KN 600
Max. Processing size mm 16×200
Punching Processing Range mm ∅ 4.3- ∅ 35
Max. Amount of Punching Molds 8 sets of Punching Molds & 1 set of Cutting Tool
Max stroke of X-axis mm 2000
X-axis Position Speed m/min 75m/min
Max stroke of Y-axis mm 960
Y-axis Position Speed m/min 35m/min
Max stroke of Z-axis mm 310
Z-axis Position Speed m/min 35m/min
Punching Accuracy mm ±0.2
Position Accuracy mm 0.10/500mm
Blow Speed 120 times/Min 150 Times/Min
Amount of CNC Axis 4 Axis 6 Axis
Outside Dimension mm 10500x2900x1800
