MAIN FEATURES:

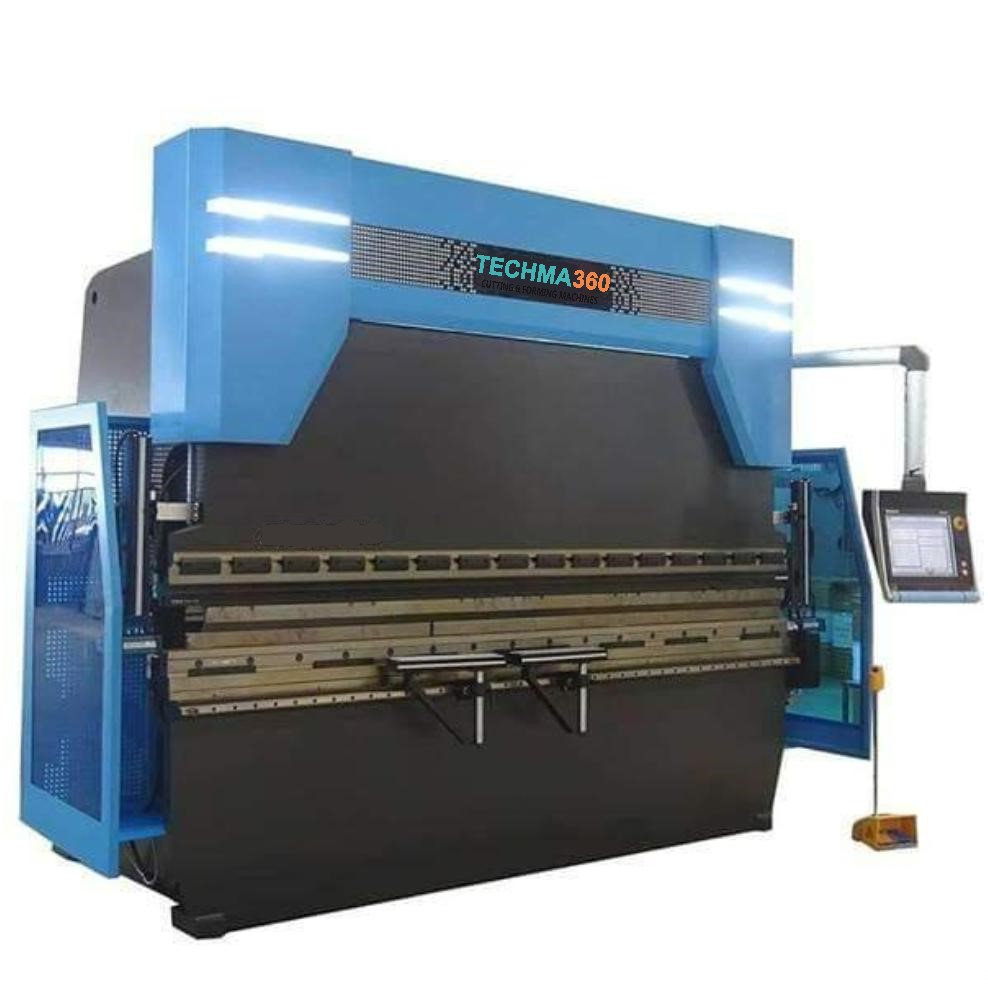

This CNC hydraulic press brake machine is advanced in technology and reliable in metal sheet bending performance. It is widely used in plane, automobile, trucks, shipbuilding, various fabrication industry with high production efficiency.

1. Brand-new industry design combined with modern aesthetic concept, high-quality production technology, simple appearance.

2. Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate. 3. Heat treatment of the rack, rigidity optimization verification on entire machine and the application of hydraulic compensation structure jointly ensure the bending precision of MB8 series PRESS BRAKES.

4. Optimal ratio of parameters and top-level core configuration ensure stable performance and easy operation.

5. MB8 standard 2 shafts back gauge system, as to complex shape work pieces, 4 or 5 shafts back gauge system and corresponding dies are available for your option.

6. Press brake using fully closed-loop electro-hydraulic servo control technology, slider position signals can be feedback to CNC system by bilateral gratings, then CNC system adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider Y1, Y2 running on the same frequency, maintaining the parallel state of the worktable.

7. According to state of sheet metal on the press brake, CNC system can automatically control the table deflection compensation yielding uniform length of all workpieces angles.

8. The use of hydraulic deflection compensation gives access to uniform full length workpieces. Hydraulic deflection compensation consists of a set of oil cylinders under the worktable, which can make the table occurs relative movement and form an ideal convex curve, ensuring the relative positions with slider keep unchanged. Compensation valves are subject to plate thickness and properties of material to be bent.
